Model DK-M3
Volume Adjustable Grilles

Model SX Vent Cap

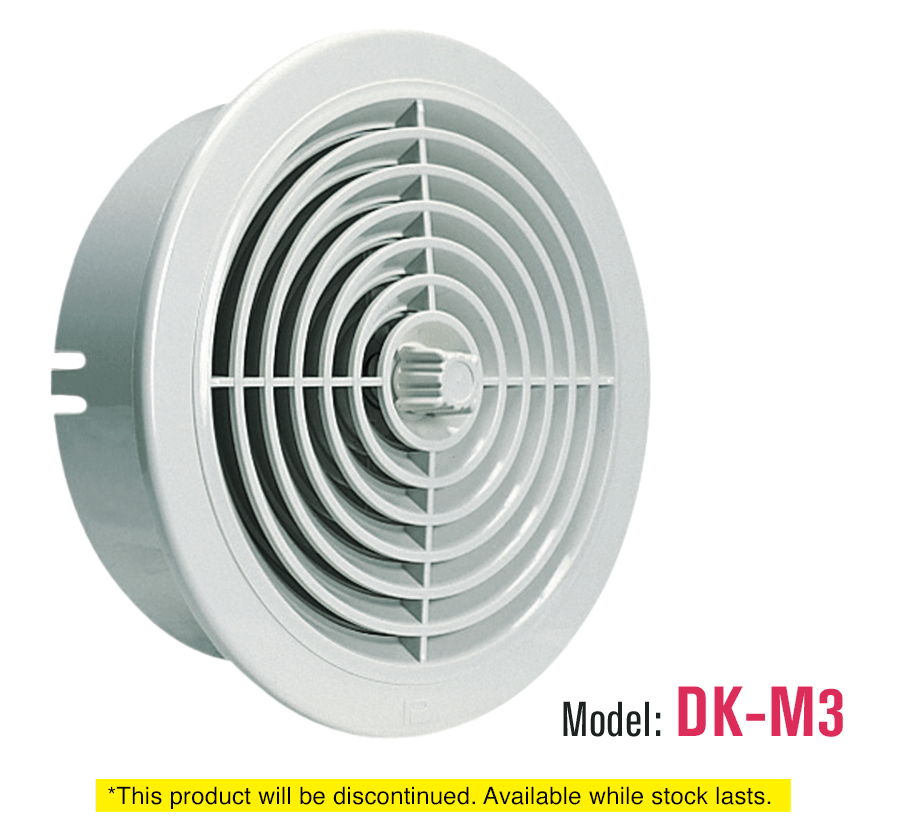

The DK-M3 Adjustable Plastic Grille offers excellent architectural styling for fresh air intake and exhaust applications. Standard with volume control damper, it provides an integral, readily-accessible airflow adjustment in its installed position. The high density plastic construction is virtually corrosion-proof and is suitable for use in high humidity indoor installations, such as bathrooms, showers, and dishwashing areas.

Material: ABS Resin
Finish: White
Size: 3", 4", 6"

FEATURES

Contemporary Design Goes with All Decors Available for Standard Duct Sizes
Suitable for High Humidity Areas Concealed, Spring Clip, Fastening Mechanism*
Precision Air Flow Adjustment Off-White Finish
Durable ABS Plastic
*Recommended use of (3) No.8 screws through body into duct wall to ensure positive connection in ceiling application.

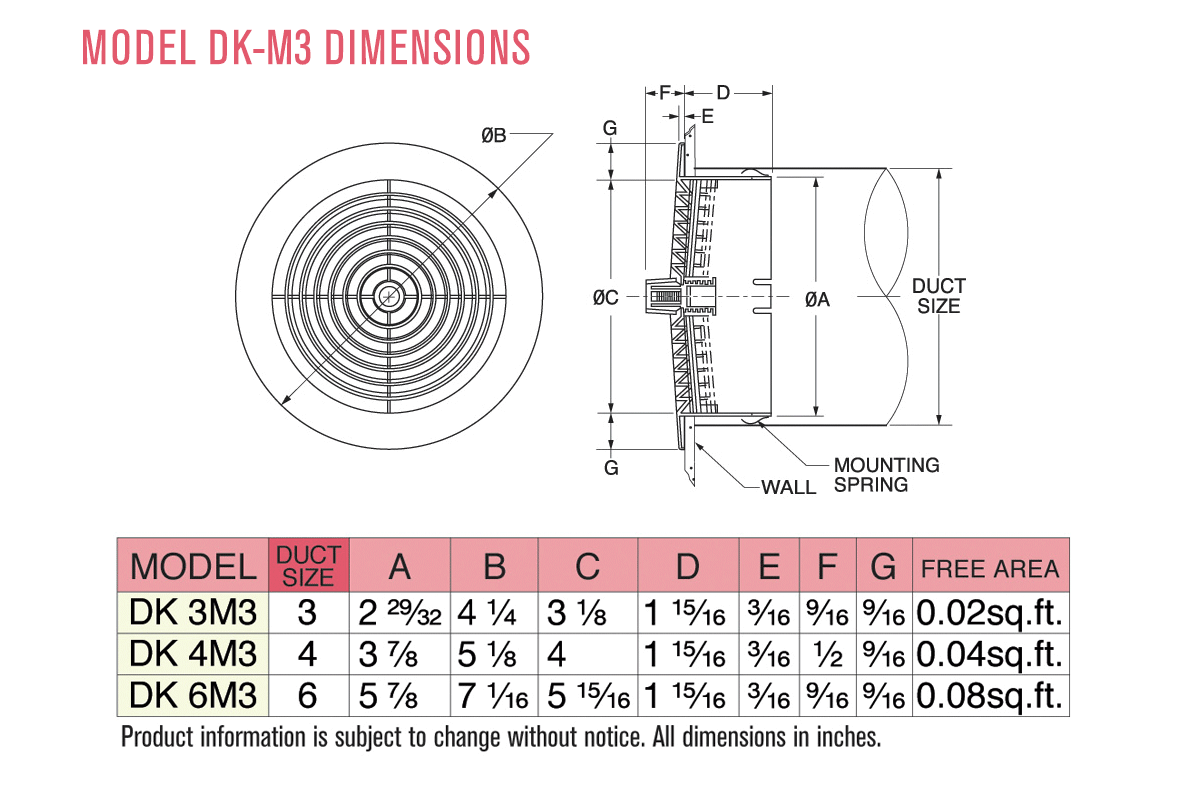

DIMENSIONS

Dimensions
